Account Aggregation Architecture

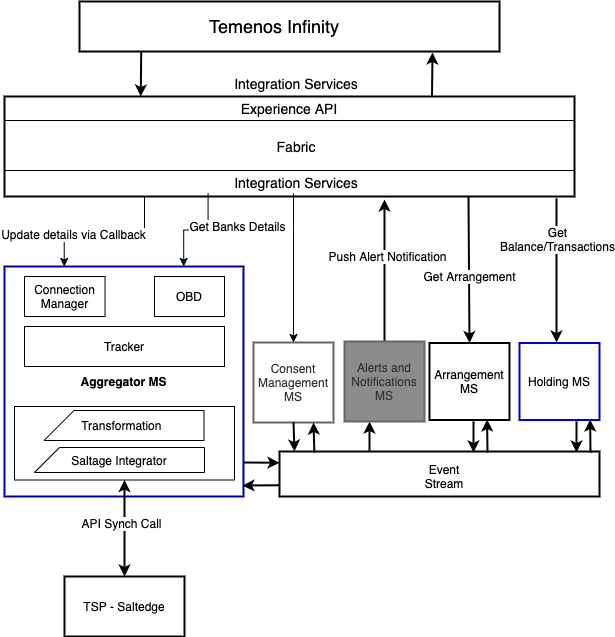

This section shows the architecture of the Account Aggregation Microservice.

Account Aggregation microservice elements are explained in the below table.

Element	Description
Other Bank Directory	Holds the other bank details
Salt Edge Integrator	Communicates with the TPP provider and transfers the respective account and transaction details to the Arrangement and Holdings microservices.
External Connection Manager	holds the connection details of the TPP for every digital profile user
Tracker	Tracks whether the account transactions and balances are successfully loaded to the respective microservice

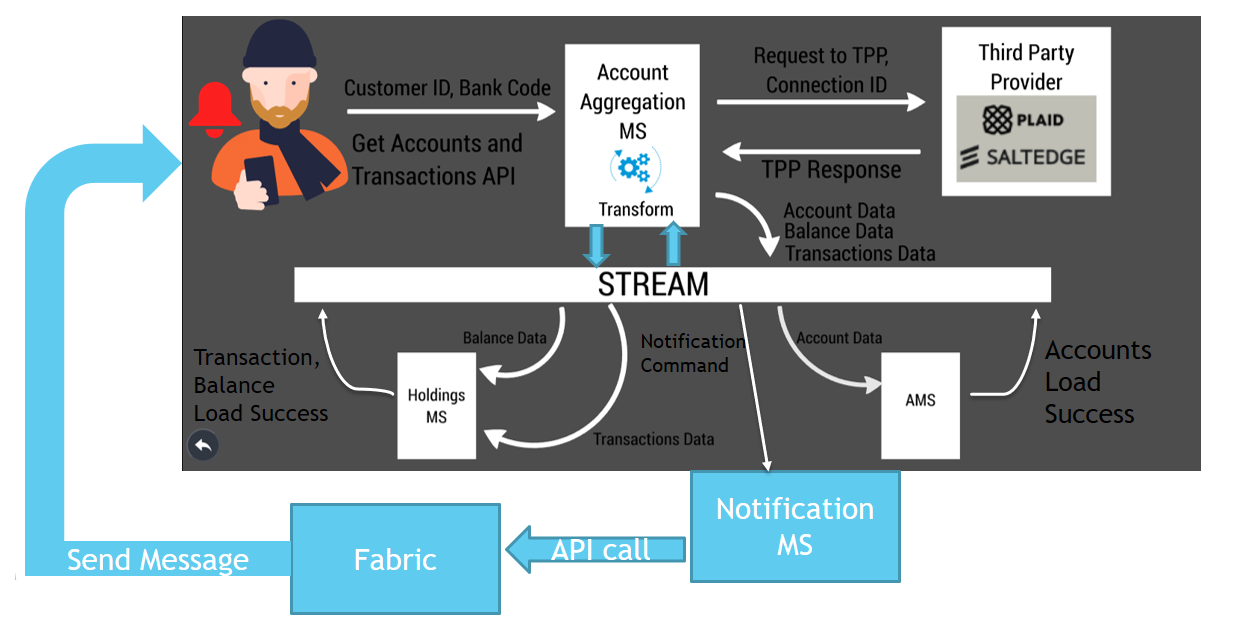

The workflow among various microservices in this architecture is explained below:

• The Arrangement microservice holds the static details of the accounts received from the TPP provider.
  Holdings microservice stores the account balances and transactions.
• The Consent microservice stores the consent received from the TPP.
• The Notification microservice acts as an intermediate layer between the Account Aggregation Microservice and Fabric. It generates notifications for the events defined below and sends the request to Fabric.
• Fabric then forwards and displayed the message to the respective customer through text message, email or app notification.
