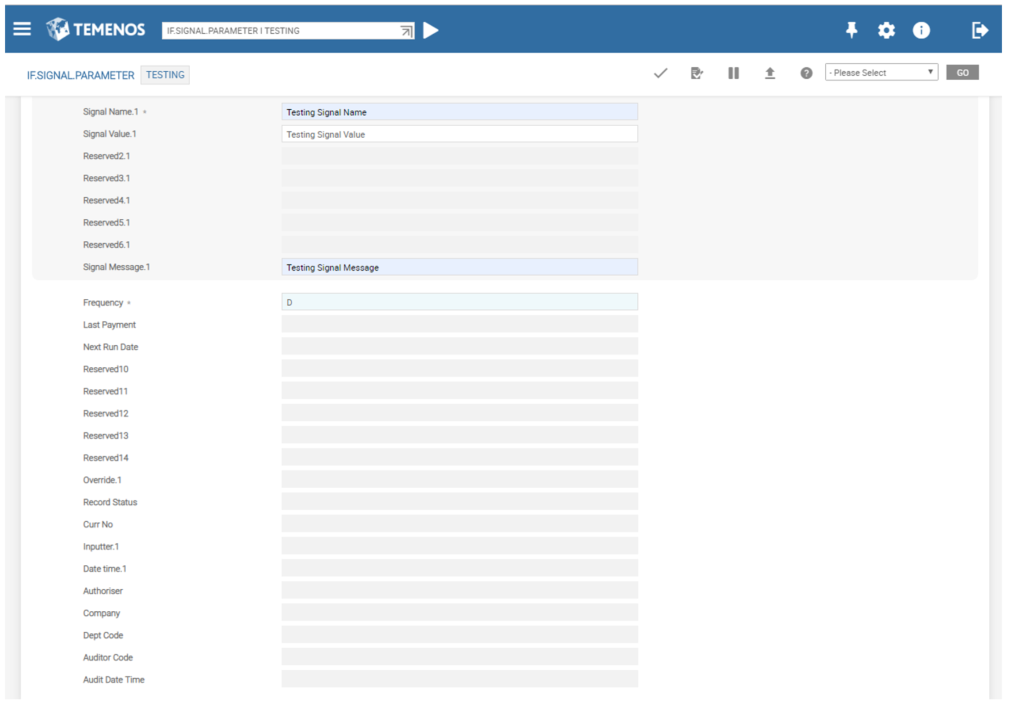

The IF.SIGNAL.PARAMETER table

The IF.SIGNAL.PARAMETER table provides signal parameters for the Signal service.

• SIGNAL.NAME

  The name of signal. For example COBStarted.

• SIGNAL.VALUE

  The value of the signal. For example Yes.

• SIGNAL.MESSAGE

  The message of the signal. For example COB Started on 20190101.

• FREQUENCY The frequency at which the event is triggered. Allowed values are:

• A - ad hoc.

• D - every working day.

• D nn – Every nth working day.

• M – The last weekend of every month.

• M nn – Every nnth day of each month (or the previous working day).

• W – Every Friday (or the previous working day).

• Y – The last weekend day of the year.

• Y nn – The last weekend day of the nth month in the year.

• LAST.RUN.DATE

  The last run date value of the Signal service. It is used to calculate NEXT.RUN.DATE. This is a no input field.

• NEXT.RUN.DATE

  The next run date for triggering the signal.

  This is a no input field.

• Reserved Fields

  These are reserved for future use.
