Installing Generic Configuration Microservices in AWS

This section helps you to install the Generic Configuration Microservice in AWS cloud.

Procedure:

1. Create the CONFIG_SERVICE_HOME directory.
2. Extract the ms-genericconfig-package-aws-<release>.zip release bundle file into the CONFIG_SERVICE_HOME directory.

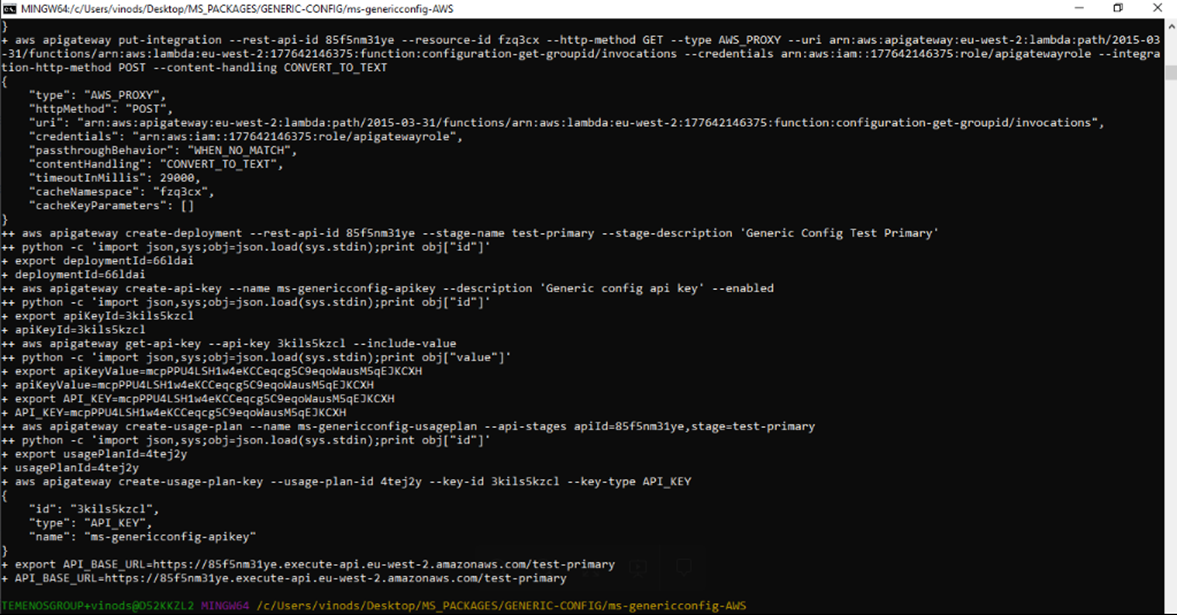

3. To make the microservice up and running, execute the ./install-aws.sh command to create AWS resources.



4. Verify Generic Config Microservice:
   • Verify get configuration by name API.

     Name	Detail
     URI	/system/configurationGroups/{groupId}/configuration/{configName}
     Method	GET
     Sample-URL	https://85f5nm31ye.execute-api.eu-west-2.amazonaws.com/test-primary/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/BalanceViewer
     Sample-Response	[{ "message": "Configuration file does not exists:", "code": "404" }]

   • Verify get all configurations API.

     Name	Detail
     URI	/system/configurationGroups/{groupId}/configuration
     Method	GET
     Sample-URL	https://85f5nm31ye.execute-api.eu-west-2.amazonaws.com/test-primary/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration
     Sample-Response	[{ "message": "Configuration file does not exists:", "code": "404" }]

5. To stop and remove the existing resources, execute the ./destroy-aws.sh command.

Import policy into configuration server:

• Value of {groupId} path parameter should be always SECURITY.POLICY
• Value of {configName} path parameter should be policy ID
• Value of id field should be policy ID
• Value of data field should be Base64 encoded
• Policy files are available under the HOLDINGS_SERVICE_HOME directory
• To add a policy file into generic-config database, the following described API should be used.

  Name	Detail
  URI	/system/configurationGroups/{groupId}/configuration/{configName}
  Method	POST
  Sample-URL	https://85f5nm31ye.execute-api.eu-west-2.amazonaws.com/test-primary/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/BalanceViewer
  Sample-Payload	{ "id": "BalanceViewer", "name": "BalanceViewer policy file", "version": "1.0.0", "configData": { "data": "PD94bWwgdmVyc2lvbj0i", "configType": "xml" } }
  Sample-Response	{ "id": "BalanceViewer", "name": "BalanceViewer policy file", "version": "1.0.0" }

• To modify a policy file available in generic-config database, the following described API should be used.

  Name	Detail
  URI	/system/configurationGroups/{groupId}/configuration/{configName}
  Method	PUT
  Sample-URL	https://85f5nm31ye.execute-api.eu-west-2.amazonaws.com/test-primary/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/BalanceViewer
  Sample-Payload	{ "version": "1.0.0", "configData": { "data": "PD94bWwgdmVyc2lvbj0i", "configType": "xml" } }
  Sample-Response	{ "id": "BalanceViewer", "name": "BalanceViewer policy file", "version": "1.0.0" }
